    HASL SMT Multilayer PCB Board

    Ask Lasest Price
    Brand Name : Leadsintec
    Model Number : PCBA
    Certification : IATF16949, ISO13485, ISO9001
    Price : Negotiable (Depends on your gerber and bom)
    Payment Terms : L/C, T/T, D/A, D/P, Western Union
    Supply Ability : 80000pcs/month
    Delivery Time : 1-30days
    • Product Details
    • Company Profile

    HASL SMT Multilayer PCB Board

    HASL SMT Multilayer PCB Board​


    Multilayer PCB Board Gold Finger FR4 Prototype Circuit Board Industrial PCB Assembly


    PCBA Capability

    SMT Lines13 Lines
    Capacity8 Million Placements Per Day
    Max Board Size680*550mm Smallest:0.25"*0.25"
    Min Components size0201-54 sq.mm (0.084 sq.inch),Long Connector,CSP,BGA,QFP
    Speed0.15sec/chip, 0.7sec/QFP
    Wave-SolderMax.PCB Width:450mm
    Min.PCB Width:unlimited
    Components Height:Top 120mm/Bot 15mm
    Sweat-SolderMetal Types:Part,Whole,Inlay,Side-step
    Metal Material:Copper,Aluminum
    Surface Finish:Plating Au,Plating Silver, Plating Sn
    Air Bladder Rate: less than 20%
    Press-fitPress Range:0-50KN
    Max.PCB Size:800*600mm
    Assembly TypesSMT and Thru-hole
    Solder TypeWater Soluble Solder Paste, Leaded, and Lead-Free
    File FormatsBill of Materials, Gerber Files, Pick-N-Place Files(XYRS)
    Type of ServiceTurn-Key, Partial Turn-Kye, or Consignment
    Component PackagingCut Tape, Tube Reels Loose, Parts
    Turn Time1-15days
    TestingXRAY Inspection, AOI Testing ICT, Flying Probe, Burn-in, Function Test

    Since 2007, Leadsintec provide Electronics Manufacturing Service (EMS) in Shenzhen, China. As an ISO9001, ISO14001, ISO13485, IATF16949 Certification manufacturer, We offer flexible, cost-effective and high-quality EMS solutions for PCB Manufacturing, printed circuit board assembly (PCBA), and complete product assembly through the state of the art manufacturing technologies and production facilities.

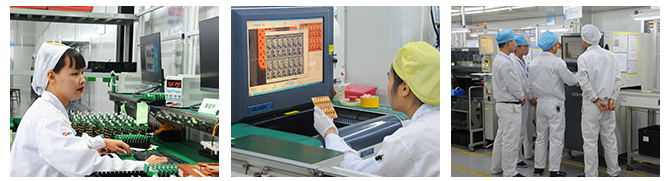

    Our factory is equipped with a variety of assembly technologies including Surface Mount Machine, PTH Insertion, COB, BGA, Flip, Wire Bonding, Box Build, and Lead-Free Soldering. Our production fact sheet is as follows.



    1. One-Stop Fabrication and Assembly:
    Fast, high precision, complicated, high quality a turnkey start-to-finish solution : PCB Manufacturing + Components Sourcing + PCB Assembly + Testing, meets all your needs.

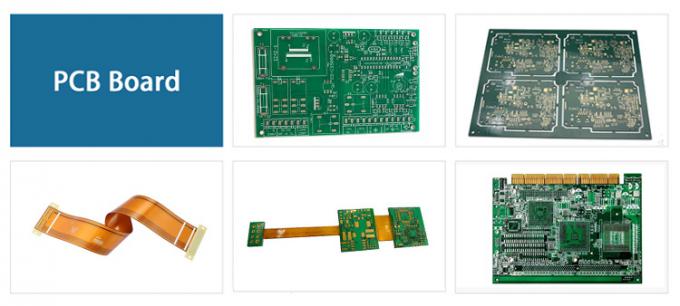

    Bare PCB Manufacturing Type:

    * Rigid PCB;

    * Flexible PCB;

    * Rigid-flex PCB;

    * HDI PCB;

    * Gold-Plated PCB;

    * High Frequency PCBs;

    * Aluminum PCB;

    * Copper Base Circuit Board;

    * High TG PCB;

    * Heavy Copper PCB

    (Customized)

    High TG Prototype Fr4 PCB Fabrication HASL For Electronics Components 1


    2. Multiple PCB Assembly Services:
    SMT, THT, Mixed Assembly, Package on Package (POP), Rigid PCBs, Flexible PCBs, Rigid-flex PCBs, HDI PCBs, Gold-Plated PCBs, High Frequency PCBs, etc. - if there's a type of printed circuit board that can be assembled, we almost surely do it.

    3. Flexible Volume Assembly Alternatives:
    • Prototype PCB Assembly: See how well your PCB design works before generating a large order. Our quality prototype PCB assembly allows us to deliver a quick prototype, so you can identify any potential challenges in your design fast and optimize the quality of your final boards.

    • Low-Volume, High Mix PCB Assembly: If you require a number of different boards for specialized applications, Leadsintec Is your best choice.

    • High-Volume PCB Assembly: We are equally as skilled at cranking out large PCB assembly orders as we are at delivering small ones.

    • Consigned & Partial PCB Assembly: Our consigned PCB assembly services meet IPC Class 3 standards, are ISO 9001:2015-certified, ISO 14001:2015-certified, and are RoHS-compliant.

    • Full Turnkey PCB Assembly: Also ISO 9001:2015-certified, ISO 14001:2015-certified and are RoHS-compliant, our turnkey PCB assembly allows us to take care of your entire project from start to finish, so you can step in and start taking advantage of the finished product right away.

    High TG Prototype Fr4 PCB Fabrication HASL For Electronics Components 2


    4. Components Sourcing:
    We have years of experience and stable relationships with authorized electronic components manufacturers and distributors, we can make purchases in full accordance with the customer's designated supplier. Can also help customers review and improve the supply chain, identify the specifications of electronic components, lower the cost and avoid the introduction of any defective products. All parts go through 100 percent quality inspection before use, so you always get real, quality parts.


    With over 15 years of manufacturing experience in the electronics sector, Leadsintec is more than a reliable EMS provider for OEMs. Aiming at top-notch manufacturing service and total customer satisfaction, we have maintained long-term business partnerships with customers all around the world. Our products are mainly applied in the Consuming, Industrial, Automation, Automotive, Agriculture, Defense, Aerospace, Medical and Security markets.


    High TG Prototype Fr4 PCB Fabrication HASL For Electronics Components 3


    Leadsintec Service Center


    We have a professional sales team available to assist you with PCB Manufacturing & PCB Assembly services, Send your PCB files to get a better price now!
