- High quality FR4 base control panel printed circuit boards
- Double-sided main board fr4 pcb assembly.
- Contract Manufacturing
- PCB Design & Assembly
- Provide Prototyping and flexible production
- Small order accept
- Fast lead time
As the most professional quick turn pcb prototype factory china,
Leadsintec provide one-stop pcba assembly service for customers of
aerospace pcba, military pcba, communication pcba, industrial pcba,
automotive pcba, medical pcba, smart home pcba, Iot pcba etc over
20 years.

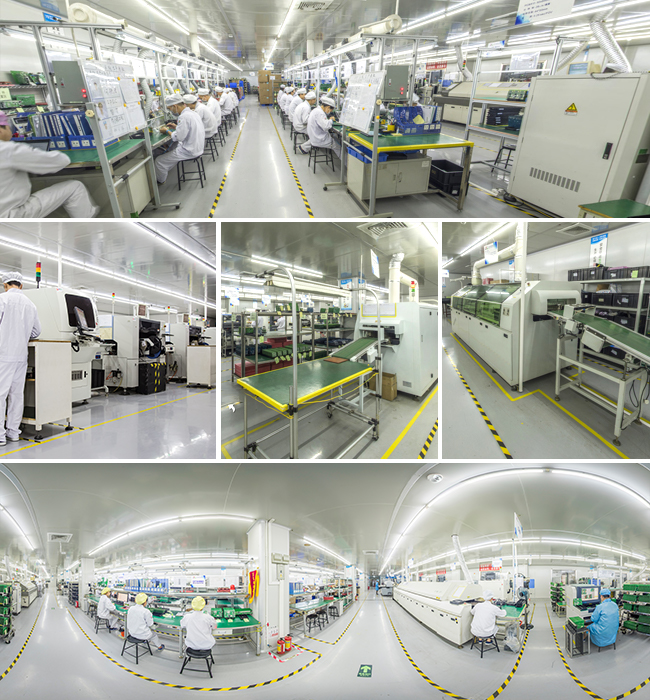

With independent pcb factory in jiangmen guangdong province and pcb
assembly factory in shenzhen china, Leadsintec can provide the most
competitive pcb cost for middle and high-end customers. The whole
pcb fabrication and assembly process is strictly comply with ISO &
IATF certificates, safety,reliable and high yeild pcba obtained.
Leadsintec is the sole pcba assembly processing factory, who is
highly praised by 2000 customers over 50 countries. The road to
high quality is hard and long, Leadsintec will try our best to
better serve for customers.
Manufacturing Capability:
item | PCB Assembly Manufacture |
Material | FR4,CEM-1, Aluminium, Polyamide |
Layer No. | 1-48 |
Finished board thickness | 0.1 mm-4.0mm |
Board Thickness Tolerance | ±10% |
Cooper thickness | 0.5 OZ-3OZ (18 um-385 um) |
Copper Plating Hole | 18-40 um |
Impedance Control | ±10% |
Warp&Twist | 0.70% |
Peelable | 0.012"(0.3mm)-0.02’(0.5mm) |
Images |
Min Trace Width (a) | 0.075mm (3mil) |
Min Space Width (b) | 0.1mm (4 mil) |
Min Annular Ring | 0.1mm (4 mil) |
SMD Pitch (a) | 0.2 mm(8 mil) |
BGA Pitch (b) | 0.2 mm (8 mil) |
Solder Mask |
Min Solder Mask Dam (a) | 0.0635 mm (2.5mil) |
Solder mask Clearance (b) | 0.1mm (4 mil) |
Min SMT Pad spacing (c) | 0.1mm (4 mil) |
Solder Mask Thickness | 0.0007"(0.018mm) |
Holes |
Min Hole size (CNC) | 0.2 mm (8 mil) |
Min Punch Hole Size | 0.9 mm (35 mil) |
Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
Hole Position Tol | ±0.075mm |
Plating |
HASL | 2.5um |
Lead free HASL | 2.5um |
Immersion Gold | Nickel 3-7um Au:1-5u'' |
OSP | 0.2-0.5um |
Outline |
Panel Outline Tol (+/-) | CNC: ±0.125mm, Punching: ±0.15mm |
Beveling | 30°45° |
Gold Finger angle | 15° 30° 45° 60° |
Certificate | IATF16949, ISO13485, ISO9001 |
Our PCB Assembly (PCBA) Service
Lead Free PCB Assembly
Main PCB Assembly(Main PCBA)
Medical PCB Assembly(Medical PCBA)
Oem PCBA
One Stop PCB Assembly
PCB Prototype Assembly Service
Prototype PCB Assembly Services(Prototype PCBA)
Quick Turn PCB Assembly(Quick Turn PCBA)
Rapid PCB Assembly(Rapid PCBA)
Rapid Prototyping PCB Assembly
Rohs Compliant PCB Assembly(Rohs PCB Assembly)
Small Batch PCB Assembly(Small PCBA)
FAQ:
Q:1.Can i have a sample to test?
A:Yes,we can send you samples to test.
Q:2.What specifications do you need for PCB quotation?
A:We need your PCB Gerber file,board thickness,copper
thickness,surface finishing and quantity to quote you.
Q:3.What is the lead time?
A:Samples need 3-5days,mass production needs 7-10days,also
according to the order volume.
Q:4.Do you have MOQ limit?
A:Even 1 pcs,we care.
Q:5.Can you offer the best price for us?
A:Yes,we are specialized PCB manufacturer directly,we can offer
lower price than any trading company.
Q:6.How do you ship the goods and how long does it take arrival?
A:We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5days to
arrive.
Q:7.What are the payment terms?
A:You can pay us with Paypal,Western Union and T/T Bank.
Q:8.Can we visit your factory?
A:Yes,welcome to visit our factory anytime,and we will lead you to
visit our factory and our production line.
